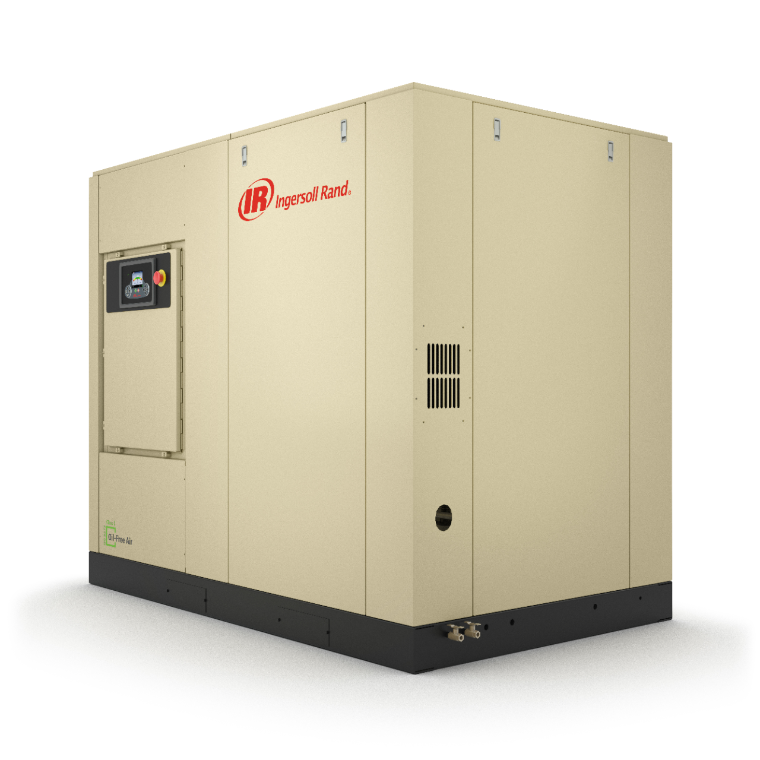

Sierra 无油回转式螺杆空压机 190-300 kW
Sierra 无油回转式螺杆压缩机经过 ISO 8573-1:2010 等级 0 认证，对大多数关键应用实现 100% 无油。这些压缩机采用高效而坚固的设计，是确保您的业务生产率的可靠重负荷机器。
特性
· 无油压缩空气：符合 ISO 8573-1:2001 等级 0，该标准规定了食品和饮料、制药、纺织和电子行业
· 可靠性更强：不锈钢组件、双排放密封以及带 UltraCoat 保护的精准加工的转子确保顺畅运转
· 智能控制减少能源成本：便于检修的 Xe-145 微处理器控制器提供持续的监控和板载诊断，使耗电量降到最低点
· 减少润滑剂更换：行业领先的 Ultra Coolant 提供高达 8,000 小时的润滑剂使用时间，是常规润滑剂使用寿命的 8 倍
· 高温工作环境：长寿命部件专为承受 46ºC 的最高环境温度而设计
![]()
型号规格
筛选
模型 | 频率（HZ） | 额定功率KW（HP） | 容量 M3/MIN (CFM) | 额定压力 BAR G (PSIG) | 長 X 寬 X 高CM（IN）風冷/水冷 | 重量KG（LB）風冷/（水冷） |
SL200 | 50 | 200 (300) | 35.0 / 1236 | 7.0 (100) | 305 (120) x 193 (76) x 244/203 (96/80) | 4853 (10699) / 5200 (11464) |
SL250 | 50 | 250 (350) | 45.2 / 1597 | 7.0 (100) | 305 (120) x 193 (76) x 244/203 (96/80) | 4853 (10699) / 5200 (11464) |
SM200 | 50 | 200 (300) | 32.6 / 1151 | 8.5 (125) | 305 (120) x 193 (76) x 244/203 (96/80) | 4853 (10699) / 5200 (11464) |
SM250 | 50 | 250 (350) | 41.5 / 1466 | 8.5 (125) | 305 (120) x 193 (76) x 244/203 (96/80) | 4853 (10699) / 5200 (11464) |
SH200 | 50 | 200 (300) | 28.5 / 1006 | 10.0 (150) | 305 (120) x 193 (76) x 244/203 (96/80) | 4853 (10699) / 5200 (11464) |
SH250 | 50 | 250 (350) | 36.0 / 1271 | 10.0 (150) | 305 (120) x 193 (76) x 244/203 (96/80) | 4853 (10699) / 5200 (11464) |
SH300 | 50 | 300 (400) | 43.3 / 1530 | 10.0 (150) | 305 (120) x 193 (76) x 244/203 (96/80) | 5126 (11301) / 5400 (11905) |
L250 | 60 | 185 (250) | 34.0/1200 | 7.0 (100) | 305 (120) x 193 (76) x 244/203 (96/80) | 4354 (9599) / 5020 (11067) |
L300 | 60 | 200 (300) | 39.6 / 1398 | 7.0 (100) | 305 (120) x 193 (76) x 244/203 (96/80) | 4354 (9599) / 5020 (11067) |
L350 | 60 | 250 (350) | 45.3 / 1600 | 7.0 (100) | 305 (120) x 193 (76) x 244/203 (96/80) | 4536 (10000) / 5020 (11067) |
H250 | 60 | 185 (250) | 30.6/1080 | 8.5 (125) | 305 (120) x 193 (76) x 244/203 (96/80) | 4354 (9599) / 5020 (11067) |
H300 | 60 | 200 (300) | 35.8 / 1264 | 8.5 (125) | 305 (120) x 193 (76) x 244/203 (96/80) | 4354 (9599) / 5020 (11067) |
H350 | 60 | 250 (350) | 42.5 / 1501 | 8.5 (125) | 305 (120) x 193 (76) x 244/203 (96/80) | 4536 (10000) / 5020 (11067) |
HH250 | 60 | 185 (250) | 26.5 / 935 | 10.0 (150) | 305 (120) x 193 (76) x 244/203 (96/80) | 4354 (9599) / 5020 (11067) |
HH300 | 60 | 200 (300) | 33.3 / 1175 | 10.0 (150) | 305 (120) x 193 (76) x 244/203 (96/80) | 4354 (9599) / 5020 (11067) |
HH350 | 60 | 250 (350) | 39.7 / 1400 | 10.0 (150) | 305 (120) x 193 (76) x 244/203 (96/80) | 4536 (10000) / 5020 (11067) |
HH400 | 60 | 300 (400) | 43.8 / 1545 | 10.0 (150) | 305 (120) x 193 (76) x 244/203 (96/80) | 5216 (11499) / 5400 (11905) |
