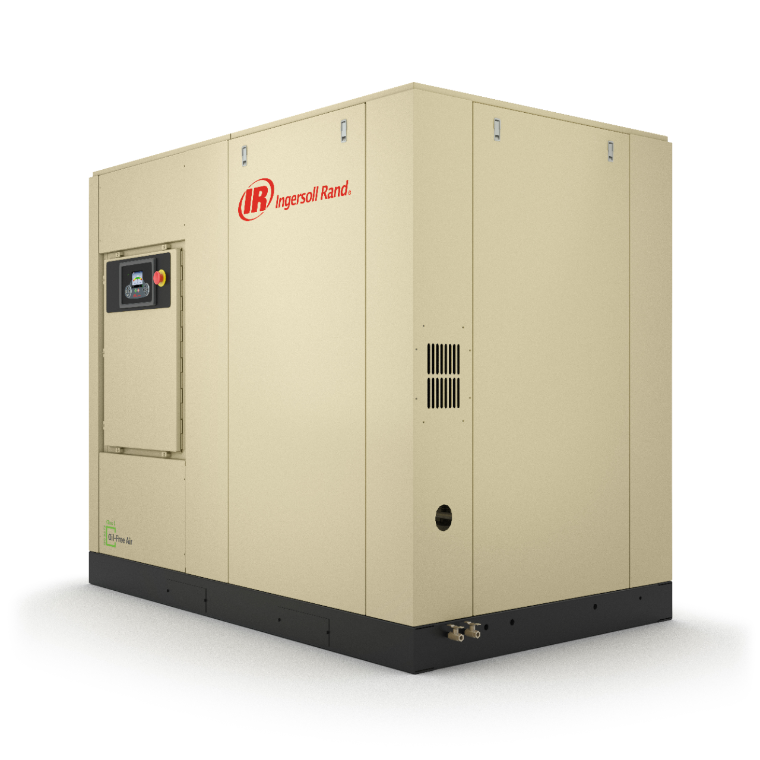

Sierra 无油回转式螺杆空压机 90-160 kW
Sierra 无油回转式螺杆压缩机经过 ISO 8573-1:2010 等级 0 认证，对大多数关键应用实现 100% 无油。这些压缩机采用高效而坚固的设计，是确保您的业务生产率的可靠重负荷机器。 寻找经销商
特性
无油空气：符合 ISO 8573-1:2001 等级 0，该标准规定了食品和饮料、制药、纺织和电子行业
可靠性更强：不锈钢组件、双排放密封以及带 UltraCoat 保护的精准加工的转子确保顺畅运转
智能控制减少能源成本：便于检修的 Xe-145 微处理器控制器提供持续的监控和板载诊断，使耗电量降到更低点
减少润滑剂更换：先进的 Ultra Coolant 提供高达 8,000 小时的润滑剂使用时间，是常规润滑剂使用寿命的 8 倍
高温工作环境：长寿命部件专为承受 46ºC 的最高环境温度而设计
![]()
型号规格
筛选
模型 | 频率 (HZ) | 额定功率KW（HP） | 容量 M3/MIN (CFM) | 额定压力 BAR G (PSIG) | 長 X 寬 X 高CM（IN）風冷/水冷 | 重量KG（LB）風冷/（水冷） | ||||||
SL90 | 50 | 90 (125) | 16.1 (568) | 7.0 (100) | 269 (106) x 159 (63) x 237/184 (93/73) | 3200 (7055) / 3300 (7275) | ||||||
SL110 | 50 | 110 (150) | 19.4 (685) | 7.0 (100) | 269 (106) x 159 (63) x 237/184 (93/73) | 3280 (7231) / 3380 (7452) | ||||||
SL132 | 50 | 132 (200) | 22.8 (804) | 7.0 (100) | 269 (106) x 159 (63) x 237/184 (93/73) | 3350 (7385) / 3450 (7606) | ||||||
SL150 | 50 | 150 (250) | 25.9 (915) | 7.0 (100) | 269 (106) x 159 (63) x 237/184 (93/73) | 3400 (7496) / 3500 (7716) | ||||||
SM90 | 50 | 90 (125) | 13.6 (480) | 8.5 (125) | 269 (106) x 159 (63) x 237/184 (93/73) | 3200 (7055) / 3300 (7275) | ||||||
SM110 | 50 | 110 (150) | 18.0 (635) | 8.5 (125) | 269 (106) x 159 (63) x 237/184 (93/73) | 3280 (7231) / 3380 (7452) | ||||||
SM132 | 50 | 132 (200) | 21.4 (756) | 8.5 (125) | 269 (106) x 159 (63) x 237/184 (93/73) | 3350 (7385) / 3450 (7606) | ||||||
SM150 | 50 | 150 (250) | 24.6 (869) | 8.5 (125) | 269 (106) x 159 (63) x 237/184 (93/73) | 3400 (7496) / 3500 (7716) | ||||||
SH90 | 50 | 90 (125) | 13.0 (459) | 10.0 (150) | 269 (106) x 159 (63) x 237/184 (93/73) | 3200 (7055) / 3300 (7275) | ||||||
SH110 | 50 | 110 (150) | 15.4 (544) | 10.0 (150) | 269 (106) x 159 (63) x 237/184 (93/73) | 3280 (7231) / 3380 (7452) | ||||||
SH132 | 50 | 132 (200) | 18.8 (664) | 10.0 (150) | 269 (106) x 159 (63) x 237/184 (93/73) | 3350 (7385) / 3450 (7606) | ||||||
SH150 | 50 | 150 (250) | 22.1 / 780 | 10.0 (150) | 269 (106) x 159 (63) x 237/184 (93/73) | 3400 (7496) / 3500 (7716) | ||||||
L125 | 60 | 90 (125) | 16.6 ( 586) | 7.0 (100) | 269 (106) x 159 (63) x 237/184 (93/73) | 3200 (7055) / 3300 (7275) | ||||||
L150 | 60 | 110 (150) | 19.6 (691) | 7.0 (100) | 269 (106) x 159 (63) x 237/184 (93/73) | 3280 (7231) / 3380 (7452) | ||||||
L200 | 60 | 132 (200) | 25.8 (912) | 7.0 (100) | 269 (106) x 159 (63) x 237/184 (93/73) | 3400 (7496) / 3500 (7716) | ||||||
H125 | 60 | 90 (125) | 14.8 (524) | 8.5 (125) | 269 (106) x 159 (63) x 237/184 (93/73) | 3200 (7055) / 3300 (7275) | ||||||
H150 | 60 | 110 (150) | 19.6 (691) | 8.5 (125) | 269 (106) x 159 (63) x 237/184 (93/73) | 3280 (7231) / 3380 (7452) | ||||||
H200 | 60 | 132 (200) | 24.2 (855) | 8.5 (125) | 269 (106) x 159 (63) x 237/184 (93/73) | 3400 (7496) / 3500 (7716) | ||||||
H250 | 60 | 150 (250) | 30.3 (1070) | 8.5 (125) | 305 (120)x193 (76)x 244/203 (96) | 4000 / 8820 | ||||||
HH125 | 60 | 90 (125) | 13.5 (477) | 10.0 (150) | 269 (106) x 159 (63) x 237/184 (93/73) | 3200 (7055) / 3300 (7275) | ||||||
HH150 | 60 | 110 (150) | 16.0 (566) | 10.0 (150) | 269 (106) x 159 (63) x 237/184 (93/73) | 3280 (7231) / 3380 (7452) | ||||||
HH200 | 60 | 132 (200) | 21.5 (760) | 10.0 (150) | 269 (106) x 159 (63) x 237/184 (93/73) | 3400 (7496) / 3500 (7716) | ||||||
