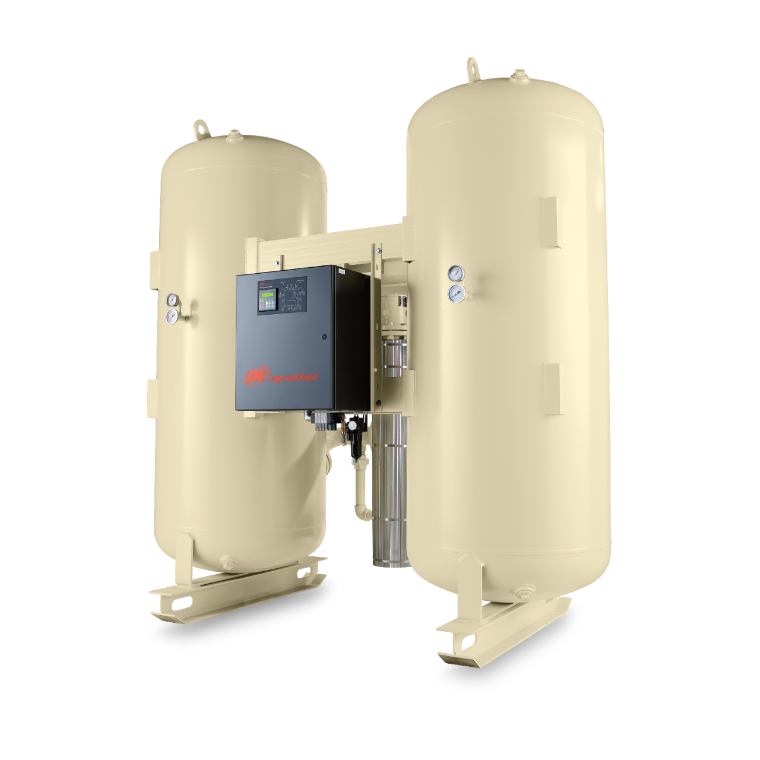

外部加热除湿干燥器 4.2-226 m3/min，150-8,000 cfm
容量范围：400-2100 cfm (11.3-59.5 m3/min) 压力露点：-40°F to -100°F (-40°C to -70°C) ISO 等级 1 至 2 电压：460V/3PH/60HZ (400V/3PH/50HZ) 最大入口压力：150 psig (10.3 barg) 最大入口温度：122°F (50°C) 干燥剂类型：活性氧化铝
质空气：经过证明的高性能除湿剂技术为关键应用提供 -40°C (-40°F) 压力露点空气；预先过滤器及二次过滤器防止除湿剂以及下游空气受到油和微粒的污染
便于维护：低矮的设计以及便于检修的组件简化了安装和维护
可靠运转：高强度除湿剂和耐用的阀门及组件延长了使用寿命
减少能源使用：低压降设计节省能源成本并提供经济的干燥解决方案
智能控制：易用的高级微处理器有助于将干燥器性能保持在最佳水平，同时持续监控功能，提供维护警报和保护通知
型号 | 容量 M3/MIN (SCFM) | 加热器 KW | 长度 X 宽度 X 高度 MM (IN) | 重量 KG (LB) | 空气进入/送出连接 | |||||
EH150 | 4.2 (150) | 2 | 813 (32.0) x 1,130 (44.5) x 1,676 (66.0) | 344 (758) | 1" NPT | |||||
EH200 | 5.7 (200) | 3 | 813 (32.0) x 1,232 (48.5) x 1,702 (67.0) | 414 (913) | 1 1/2" NPT | |||||
EH250 | 7.1 (250) | 3 | 889 (35.0) x 1,334 (52.5) x 1,727 (68.0) | 508 (1,119) | 1 1/2" NPT | |||||
EH300 | 8.5 (300) | 3 | 889 (35.0) x 1,334 (52.5) x 1,727 (68.0) | 540 (1,191) | 1 1/2" NPT | |||||
EH400 | 11.3 (400) | 4.5 | 864 (34.0) x 1,435 (56.5) x 2,083 (82.0) | 698 (1,539) | 2" NPT | |||||
EH500 | 14.2 (500) | 4.5 | 864 (34.0) x 1,435 (56.5) x 2,083 (82.0) | 774 (1,707) | 2" NPT | |||||
EH600 | 17.0 (600) | 6 | 1,194 (47.0) x 1,626 (64.0) x 2,184 (86.0) | 1,075 (2,369) | 3" NPT | |||||
EH800 | 22.7 (800) | 9 | 1,194 (47.0) x 1,626 (64.0) x 2,184 (86.0) | 1,216 (2,681) | 3" NPT | |||||
EH1000 | 28.3 (1,000) | 9 | 1,219 (48.0) x 1,994 (78.5) x 2,032 (80.0) | 1,380 (3,043) | 3" NPT | |||||
EH1200 | 34.0 (1,200) | 12 | 1,219 (48.0) x 1,994 (78.5) x 2,032 (80.0) | 1,490 (3,285) | 3" NPT | |||||
EH1500 | 42.5 (1,500) | 15 | 1,397 (55.0) x 2,134 (84.0) x 2,337 (92.0) | 2,032 (4,480) | 3" NPT | |||||
EH1800 | 51.0 (1,800) | 18 | 1,524 (60.0) x 2,134 (84.0) x 2,337 (92.0) | 2,248 (4,956) | 4 FLG | |||||
EH2100 | 59.5 (2,100) | 18 | 1,524 (60.0) x 2,134 (84.0) x 2,337 (92.0) | 2,427 (5,350) | 4 FLG | |||||
EH3000 | 84.9 (3,000) | 30 | 1,854 (73.0) x 2,438 (96.0) x 2,540 (100.0) | 3,515 (7,750) | 4 FLG | |||||
EH4000 | 113.3 (4,000) | 36 | 2,134 (84.0) x 2,591 (102.0) x 2,337 (92.0) | 4,965 (10,950) | 6 FLG | |||||
EH5000 | 141.6 (5,000) | 50 | 2,311 (91.0) x 3,048 (120.0) x 2,464 (97.0) | 6,009 (13,248) | 6 FLG | |||||
H6000 | 169.9 (6,000) | 60 | 2,413 (95.0) x 3,353 (132.0) x 2,616 (103.0) | 7,120 (15,696) | 6 FLG | |||||
EH8000 | 226.5 (8,000) | 75 | 2,565 (101.0) x 3,962 (156.0) x 2,667 (105.0) | 8,122 (17,910) | 8 FLG | |||||
