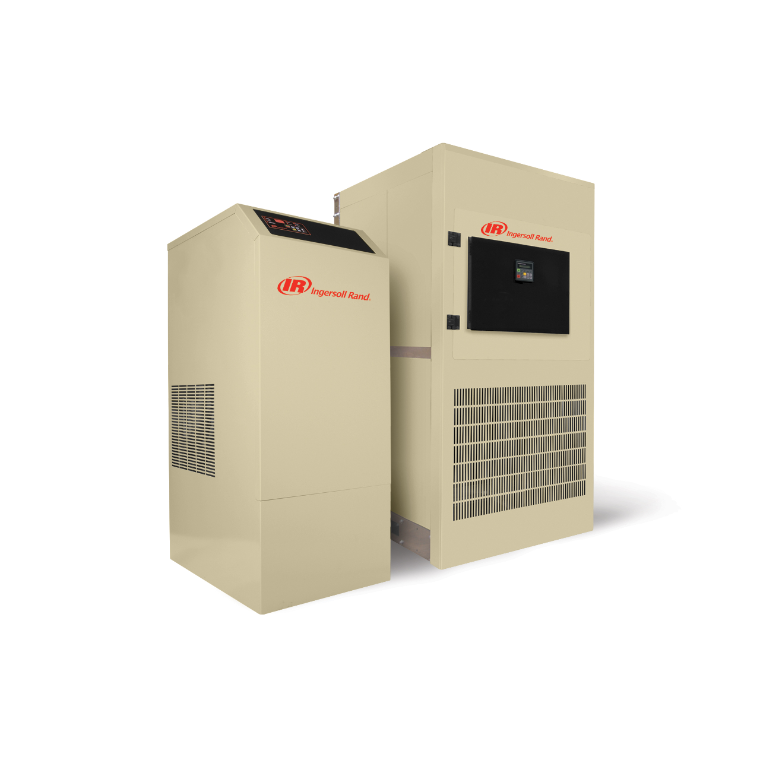

高压循环制冷干燥器 15-188 m3/min，525-6,635 cfm
容量范围：510-6460 cfm (14.4-183 m3/min) 压力露点：38°F (3°C) ISO 等级 4 冷却方法：水冷式电压：460/3/60 最大压力：680 psig (47 barg) 最大环境压力（风冷式）：120°F (49°C) 最大入口温度：120°F (49°C) 制冷剂：R-404A 寻找经销商
高压操作：非常适合 PET 应用等苛刻环境
洁净干燥空气：一致的露点控制确保始终提供干燥空气
减少能源成本：循环设计实现最大化节能，即使没有负载也不例外
可靠、长使用寿命组件：自清洁式不锈钢热交换器防止腐蚀
完全控制：易于使用的控制器自动管理干燥器操作，同时监控关键参数以实现最佳空气处理和效率
FILTER BY
型号 | 容量 @ 580 PSIG M3/MIN (SCFM) | 容量 @ 450 PSIG M3/MIN (CFM) | 长度 X 宽度 X 高度 MM (IN) | 重量 KG (LB) | 空气进入/送出连接 | |||||||
D890NC-HP | 15 (525) | 14 (510) | 826 (32.5) x 711 (28) x 1,473 (58) | 279 (615) | 1 1/2" MPT | |||||||
D1090NC-HP | 18 (640) | 18 (625) | 826 (32.5) x 711 (28) x 1,473 (58) | 333 (735) | 2" MPT | |||||||
D1340NC-HP | 22 (790) | 22 (770) | 826 (32.5) x 711 (28) x 1,473 (58) | 340 (750) | 2" MPT | |||||||
D2040NC-HP | 34 (1,200) | 33 (1,175) | 1,016 (40.0) x 1,041 (41) x 1,575 (62) | 499 (1,100) | 3" MPT | |||||||
D2770NC-HP | 46 (1,630) | 45 (1,600) | 1,016 (40.0) x 1,041 (41) x 1,575 (62) | 642 (1,415) | 3" MPT | |||||||
D4290NC-HP | 71 (2,525) | 70 (2,470) | 1,930 (76.0) x 838 (33) x 1,753 (69) | 1,254 (2,765) | 4" FLG | |||||||
D5635NC-HP | 94 (3,315) | 91 (3,230) | 2,311 (91.0) x 838 (33) x 1,905 (75) | 1,780 (3,925) | 6" FLG | |||||||
D7065NC-HP | 118 (4,150) | 113 (4,000) | 2,311 (91.0) x 838 (33) x 1,905 (75) | 1,889 (4,165) | 6" FLG | |||||||
D8585NC-HP | 143 (5,060) | 140 (4,940) | 2,438 (96.0) x 1,930 (76) x 2,540 (100) | 2,461 (5,425) | 8" FLG | |||||||
D11280NC-HP | 188 (6,635) | 183 (6,460) | 2,438 (96.0) x 1,930 (76) x 2,540 (100) | 3,232 (7,125) | 8" FLG | |||||||
型号 | ||||||||||||
D890NC-HP | 15 (525) | 14 (510) | 826 (32.5) x 711 (28) x 1,473 (58) | 279 (615) | 1 1/2" MPT | |||||||
D1090NC-HP | 18 (640) | 18 (625) | 826 (32.5) x 711 (28) x 1,473 (58) | 333 (735) | 2" MPT | |||||||
D1340NC-HP | 22 (790) | 22 (770) | 826 (32.5) x 711 (28) x 1,473 (58) | 340 (750) | 2" MPT | |||||||
D2040NC-HP | 34 (1,200) | 33 (1,175) | 1,016 (40.0) x 1,041 (41) x 1,575 (62) | 499 (1,100) | 3" MPT | |||||||
D2770NC-HP | 46 (1,630) | 45 (1,600) | 1,016 (40.0) x 1,041 (41) x 1,575 (62) | 642 (1,415) | 3" MPT | |||||||
D4290NC-HP | 71 (2,525) | 70 (2,470) | 1,930 (76.0) x 838 (33) x 1,753 (69) | 1,254 (2,765) | 4" FLG | |||||||
D5635NC-HP | 94 (3,315) | 91 (3,230) | 2,311 (91.0) x 838 (33) x 1,905 (75) | 1,780 (3,925) | 6" FLG | |||||||
D7065NC-HP | 118 (4,150) | 113 (4,000) | 2,311 (91.0) x 838 (33) x 1,905 (75) | 1,889 (4,165) | 6" FLG | |||||||
D8585NC-HP | 143 (5,060) | 140 (4,940) | 2,438 (96.0) x 1,930 (76) x 2,540 (100) | 2,461 (5,425) | 8" FLG | |||||||
D11280NC-HP | 188 (6,635) | 183 (6,460) | 2,438 (96.0) x 1,930 (76) x 2,540 (100) | 3,232 (7,125) | 8" FLG | |||||||
